BA Kolloquium V2

Lazy Model Generation

Bachlor Theses topic
by Maarten Behn

---

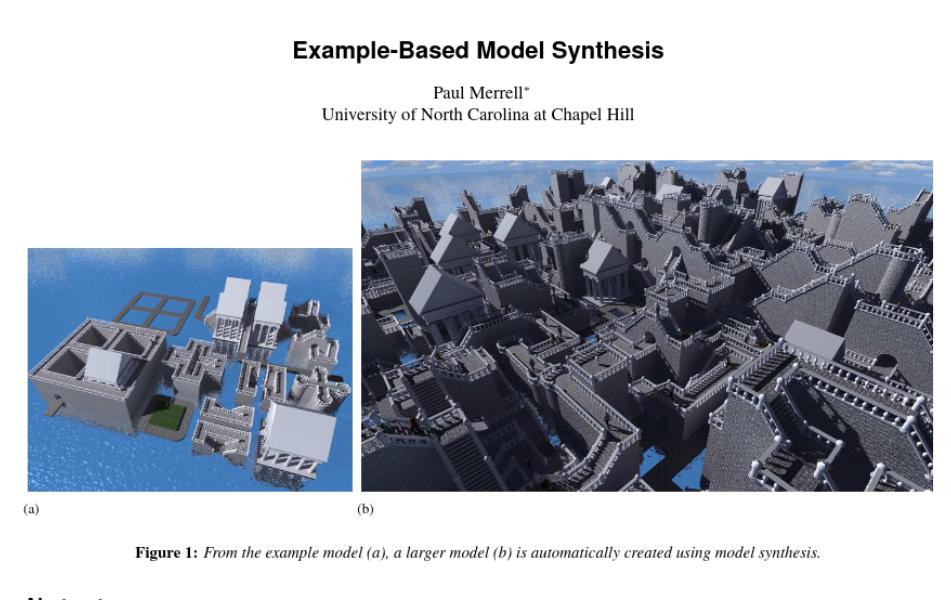

Idea: extend Paper from Paul Merrell

---

---

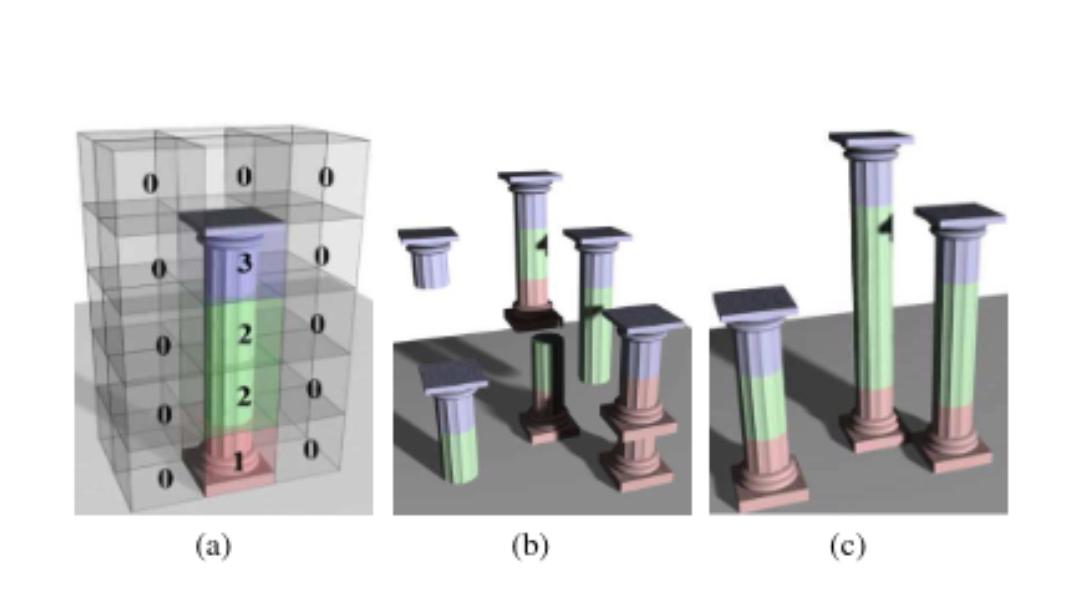

Model Synthesis Algorithm

1. Give every node every value
2. Pick a node and choose one Value
3. Check all other nodes values if they can still exist
4. Go to 2
5. Every node has been picked ⇒ done

$O(n^2\cdot m)n=|Nodes|m=|Values|$

---

Problems with Model Synthesis

• No partial regeneration when rules change
• Very hard to write your own rules

---

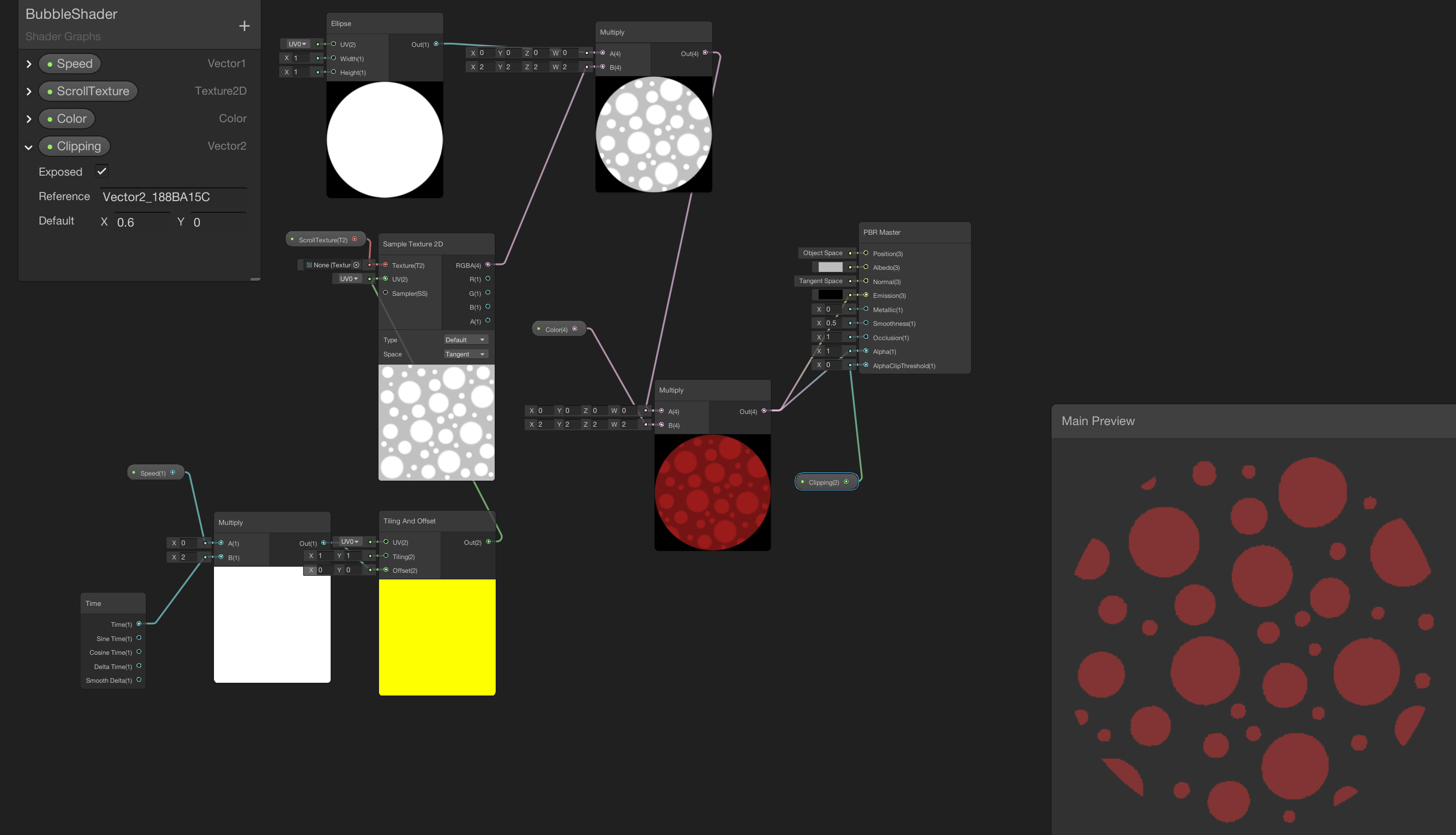

Shader Graph / Blender Geometry Nodes / etc.

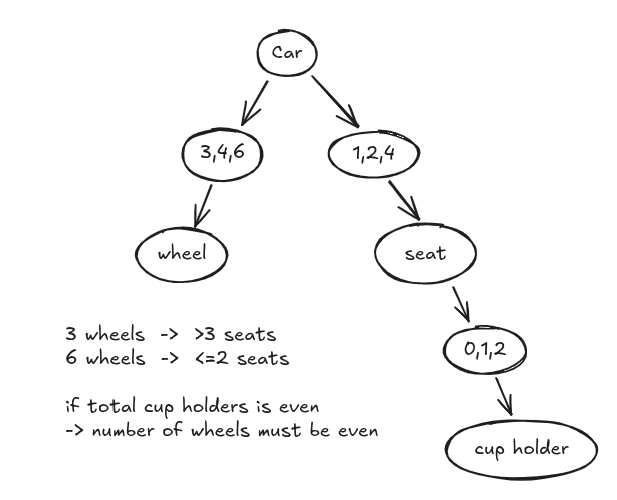

Every possible configuration is valid?

---

My Idea

---

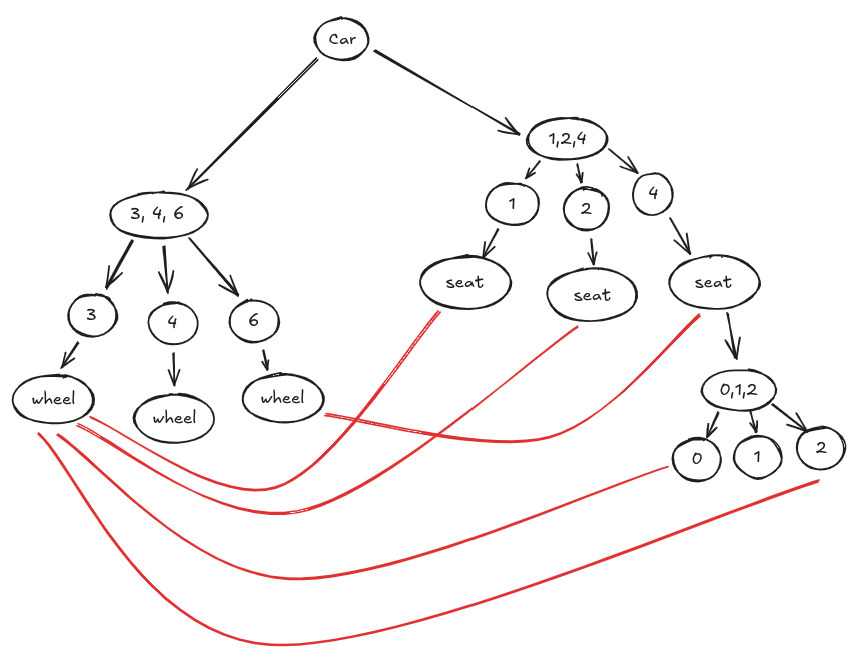

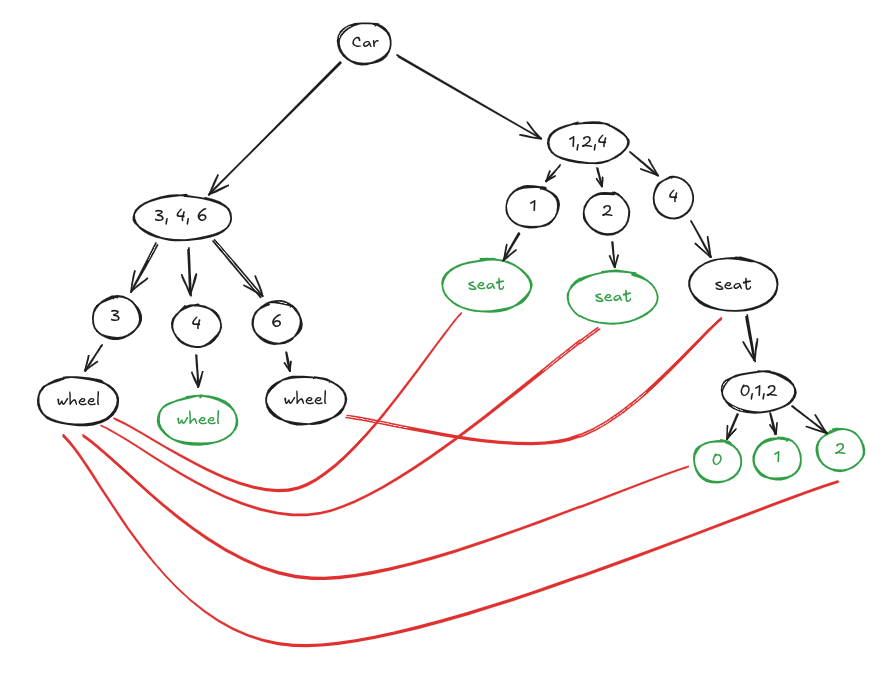

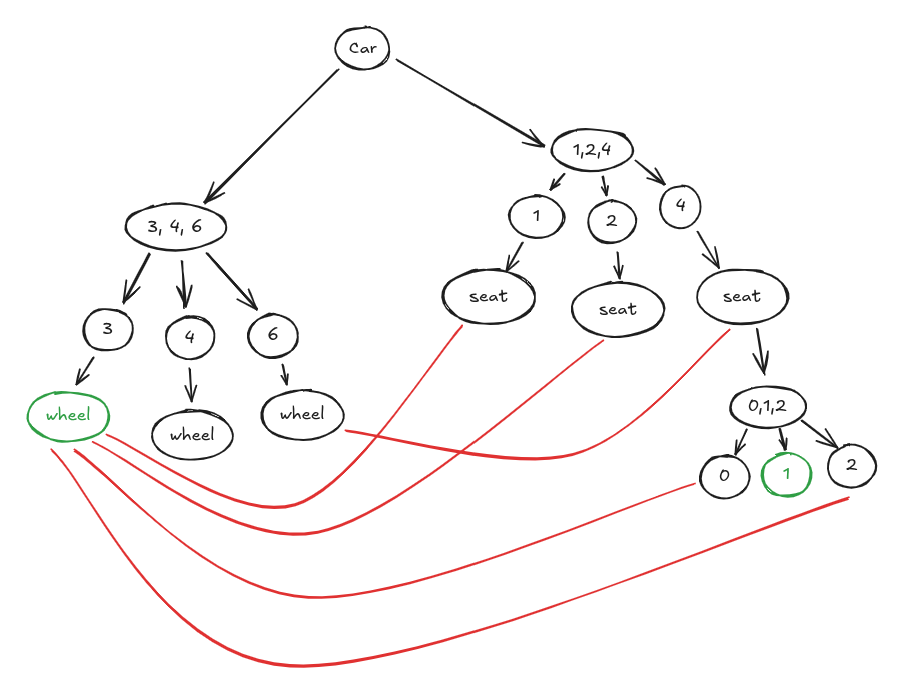

Valid solutions

---

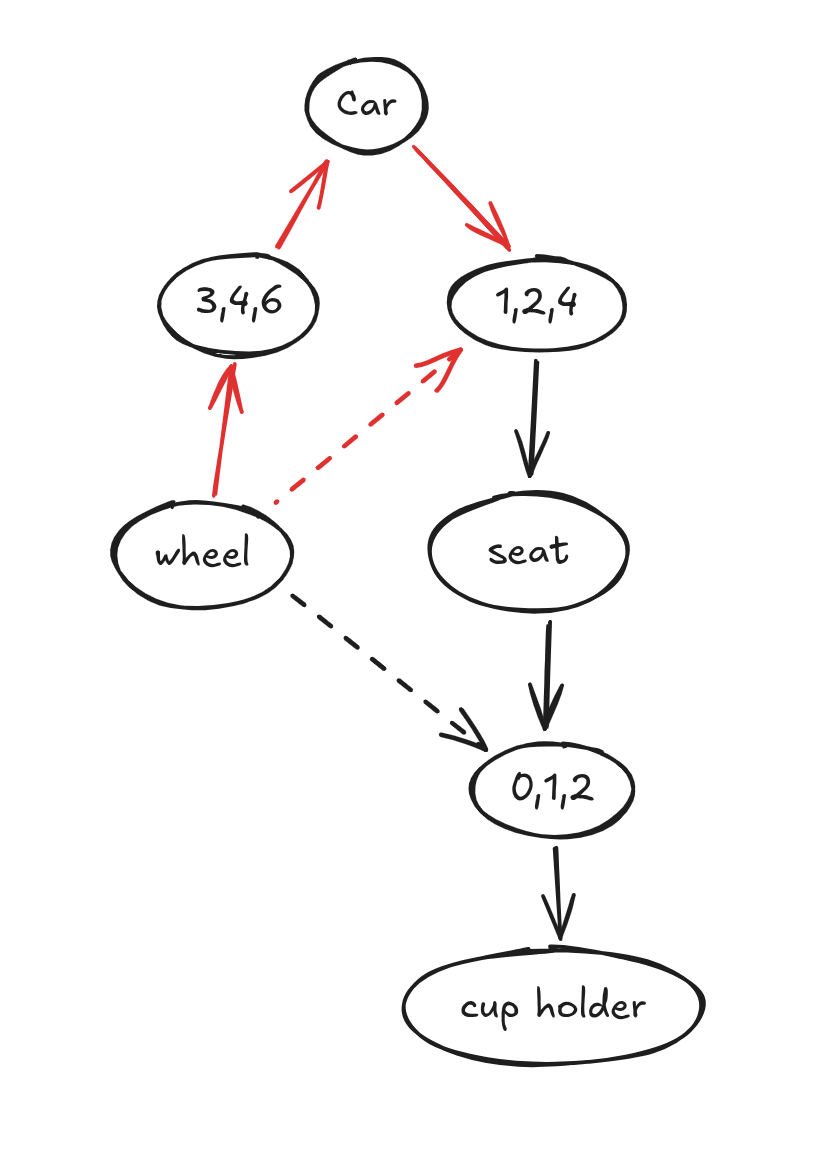

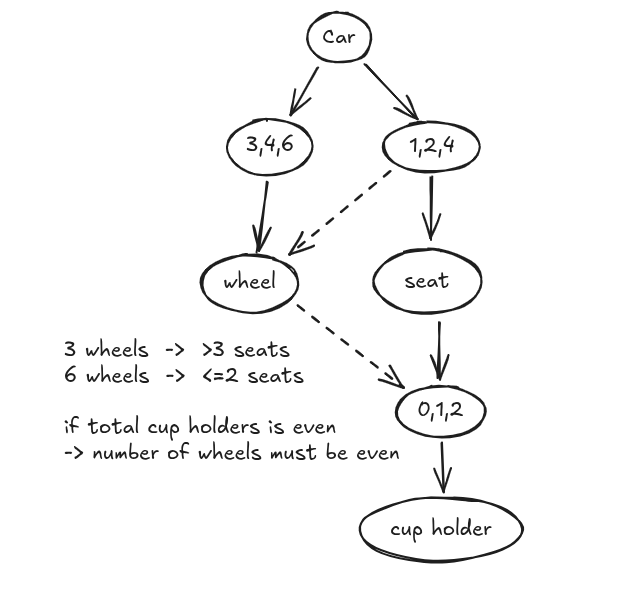

Dependency

---

calculate path to all dependencies once in template.

---

Value types

• Number Set
• Position Set
  • All Positions in Volume on a
    • Grid
    • Poissons sampling
    • etc
• Build

---

Amount is defined

• n global
• n per other node
• by other node

Value is defined

• at Template generation
• callback at evaluation (Hook)
• by other node

---

Implementation

let builder = Builder::new()
	.number_range(<Name>, |b|{b
		.ammount(OneGlobal(<Name>))
		.value(Const(3..=8))
		.depends_on(<Name>)
	})

	.pos(<Name>, |b|{b
		.ammount(OnePer(<Name>))
		.value(Hook)
	})

let template = builder.build();

---

let collapser = template.get_collasper();

for hook in collapser {
    match hook {
		NumberRangeHook { index, name } => {
			let value = collapser.get_dependent(index, <OtherName>)

		},
		PosSetHook { name } => {
			match name {
				<Name> => {

				},
				<Name> => {

				}
			}
		},
		PosHook { name } => {

		},
		Build { name } => {

		},
		Undo { name } => {

		},
		None => {},
	}
}

---

Sources

https://paulmerrell.org

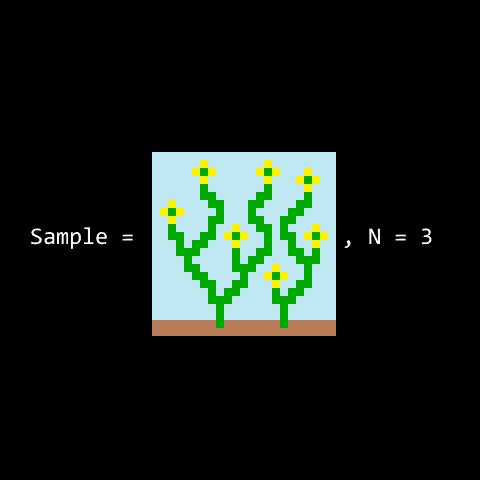

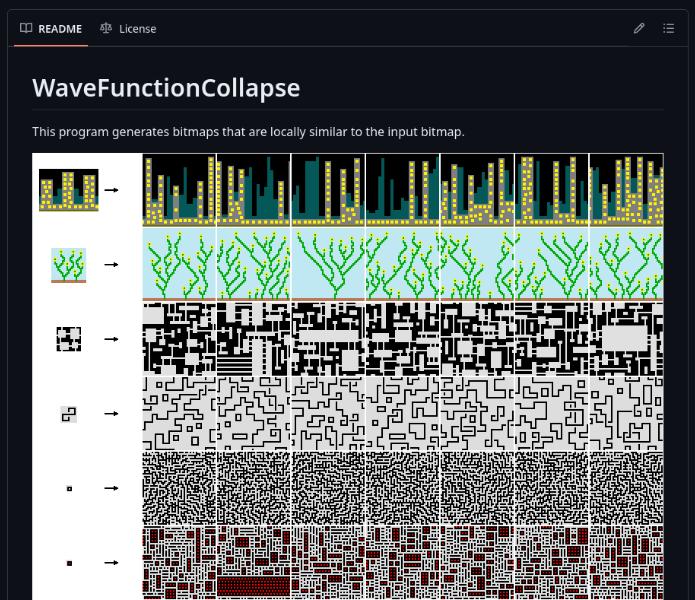

https://github.com/mxgmn/WaveFunctionCollapse
https://unity.com/de/features/shader-graph
